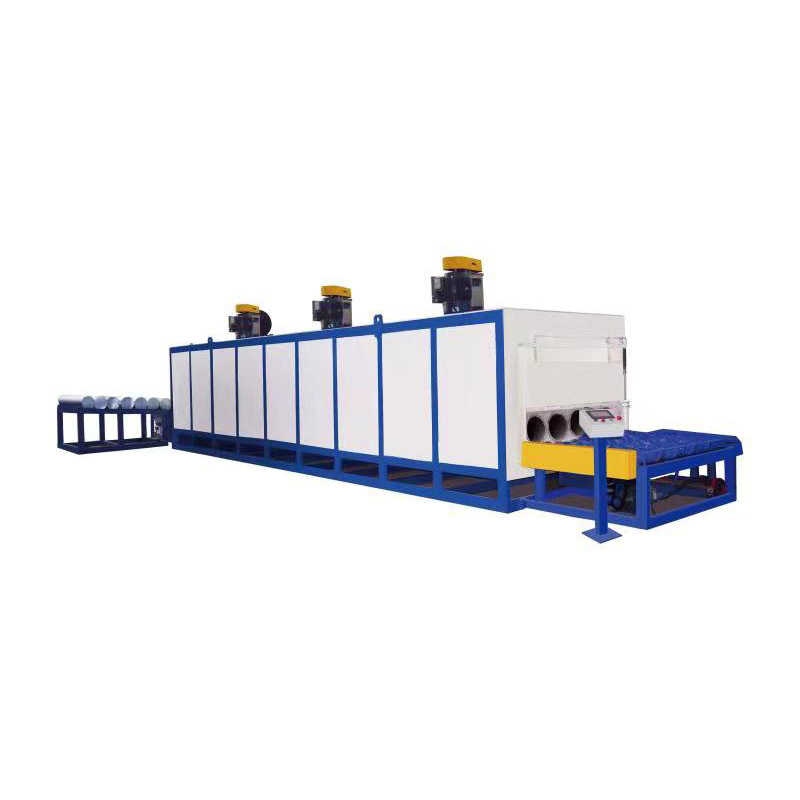

Adopting infrared radiation and the most advanced and efficient axial compression jet heating technology, combined with a mesh plate waste heat recovery system, this equipment can achieve the highest heat utilization rate.
Product Description

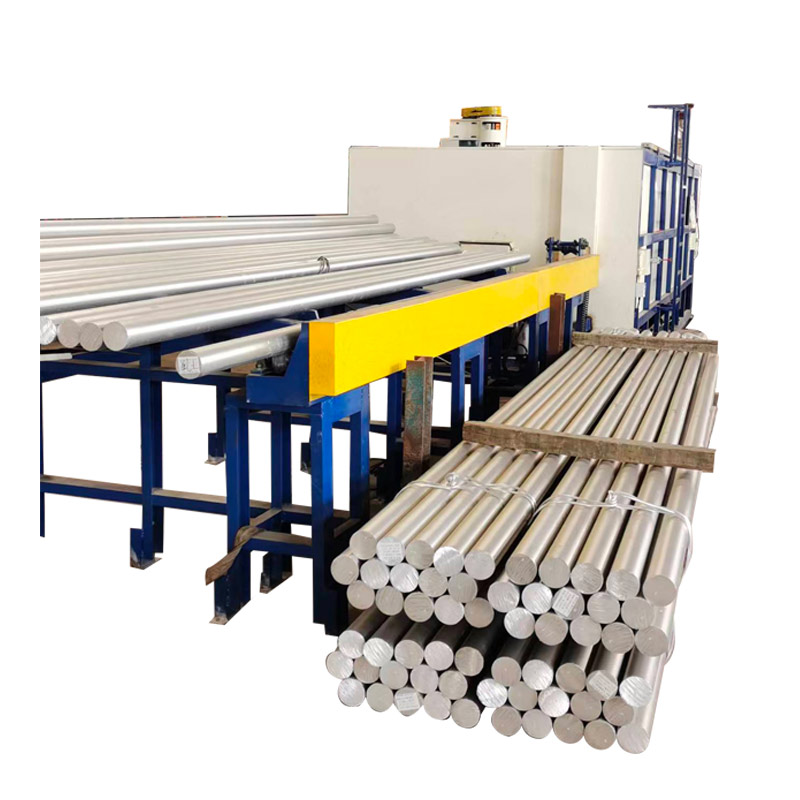

Aluminum rod specifications
φ120*6000mm
Rod discharge capacity
13 pieces
Maximum capacity
800KG per hour
Gas consumption during heating
≤14.1 cubic meters of natural gas per ton of aluminum rod
Electricity consumption during electric heating
≤ 150 kWh per ton of aluminum rod
Firegun
200000 kcal
Heating tube
150 KW
Fan power
8KW
Thickness of insulation layer on the furnace side
350mm
Empty furnace heating time (500 ℃)
1 hour
Heating time at full load (500 ℃)
2 hours
Uniformity of furnace temperature in the working a
≤±5℃
Temperature rise on the outer wall of the furnace
room temperature +≤15℃
(excluding around the furnace door)
Gun combustion chamber
310S stainless steel
Optional system supporting equipment
Semi-automatic hot shear machine
Fully automatic hot shear machine
Hot saw
Independent hydraulic station
Total weight of equipment
~13T
