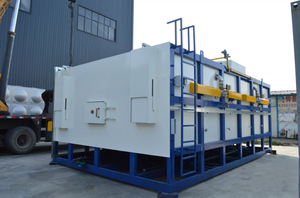

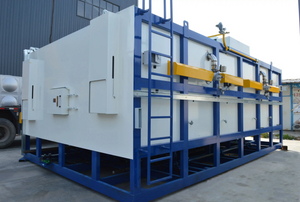

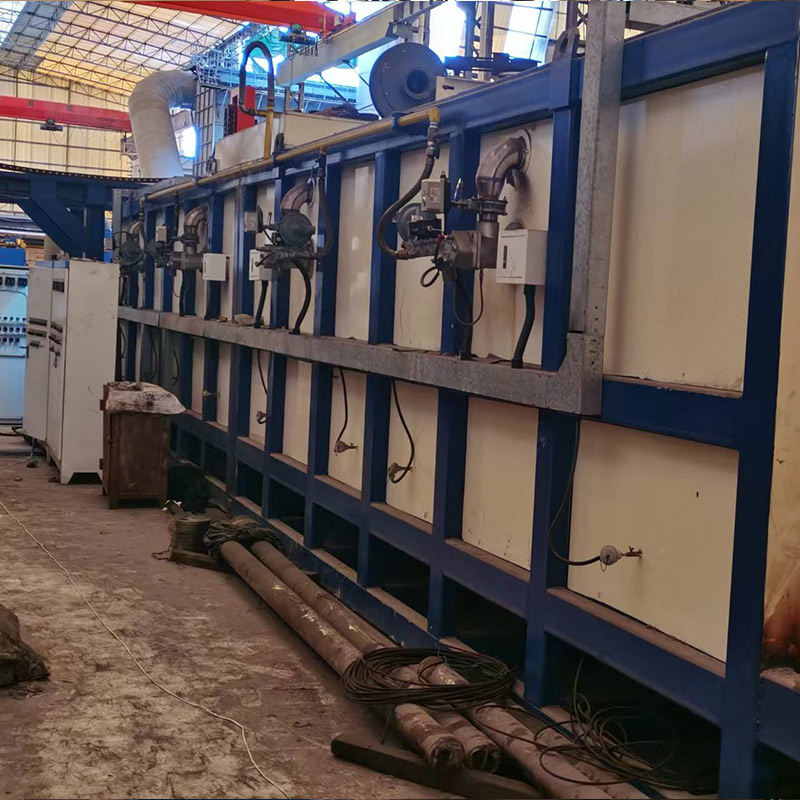

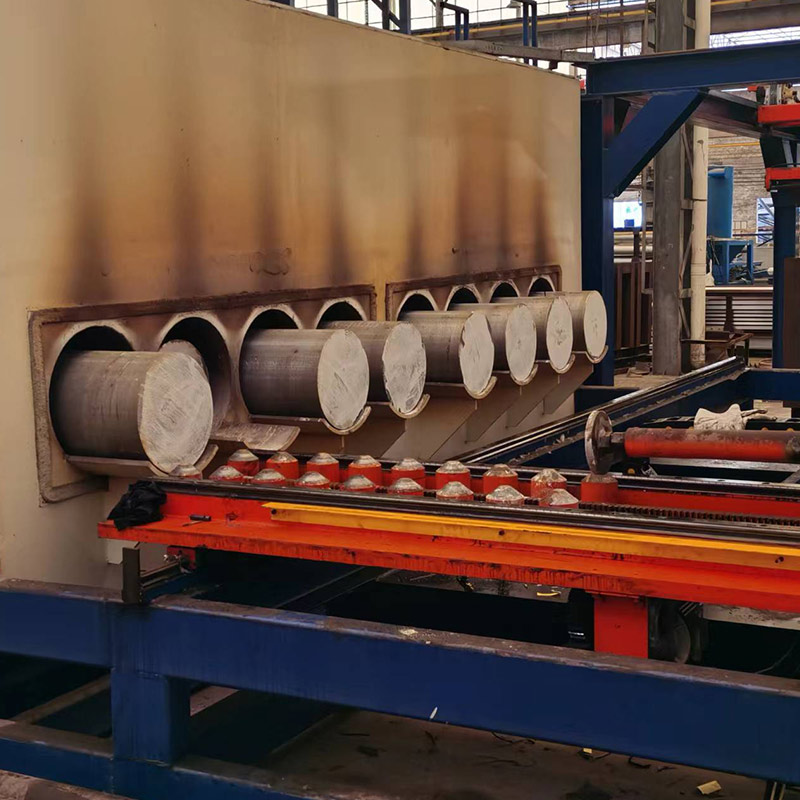

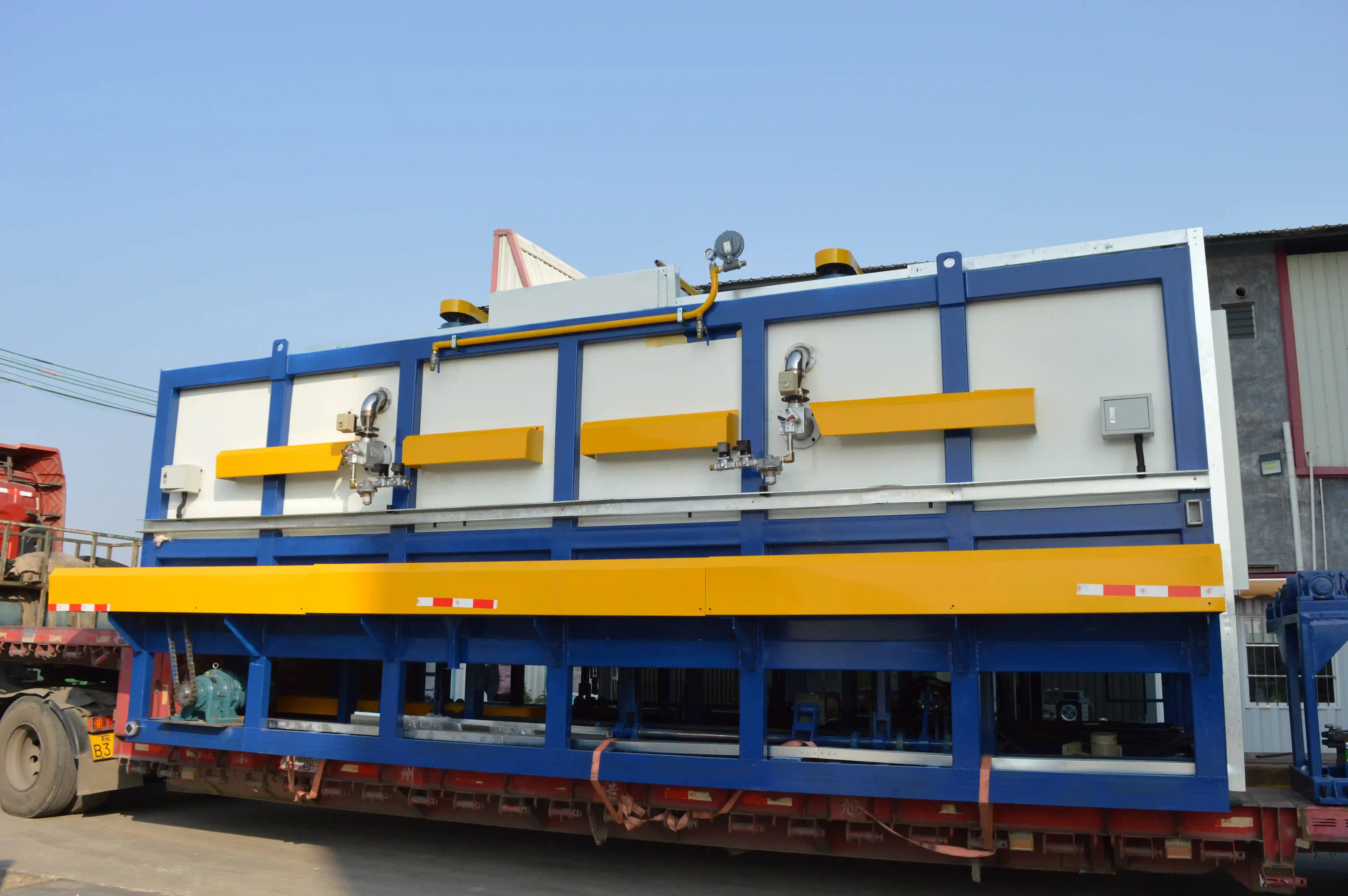

Adopting infrared radiation and the most advanced and efficient axial compression jet heating technology, combined with a compact tunnel furnace, this equipment can achieve the highest heat utilization rate.
Product Description
Aluminum rod specifications
φ380*1200mm
Production capacity
8000KG per hour
Maximum heating temperature of aluminum rod
530℃
Gas consumption (cubic meter per ton of aluminum r
≤14.1
(continuous normal production)
Gas heating capacity
1.6 million kcal
(8 pieces in total)
Total power of circulating fan
88KW
( 8 units in total)
Temperature difference between the front, middle,
≤5℃
Heat up the empty furnace to 500℃
≤60min
Heat up the aluminum rod to 500℃
≤120min
Exhaust gas temperature:
≤60℃
Temperature rose on the outer wall of the furnace
room temperature +≤15℃
(excluding around the furnace door)
Noise
≤85 Decibel
Water consumption
0 (air cooled)
Compressed air consumption 0.5Mpa
0.3M³/divide
Supply voltage
380V three phase AC power
(based on customer requirements)
Power supply frequency
50 Hz
(based on customer requirements)
Total weight of equipment
~30T

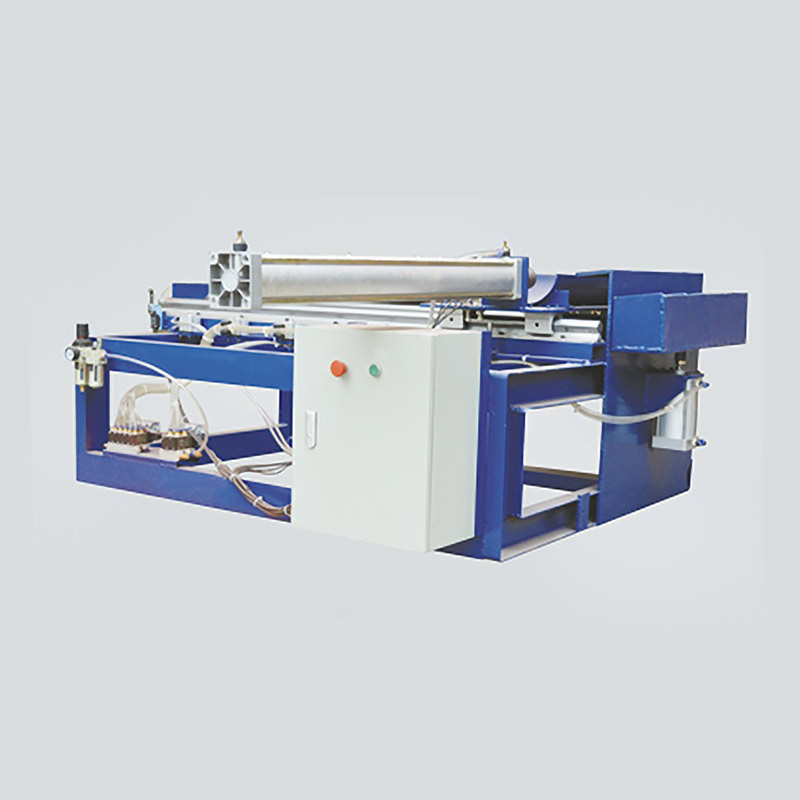

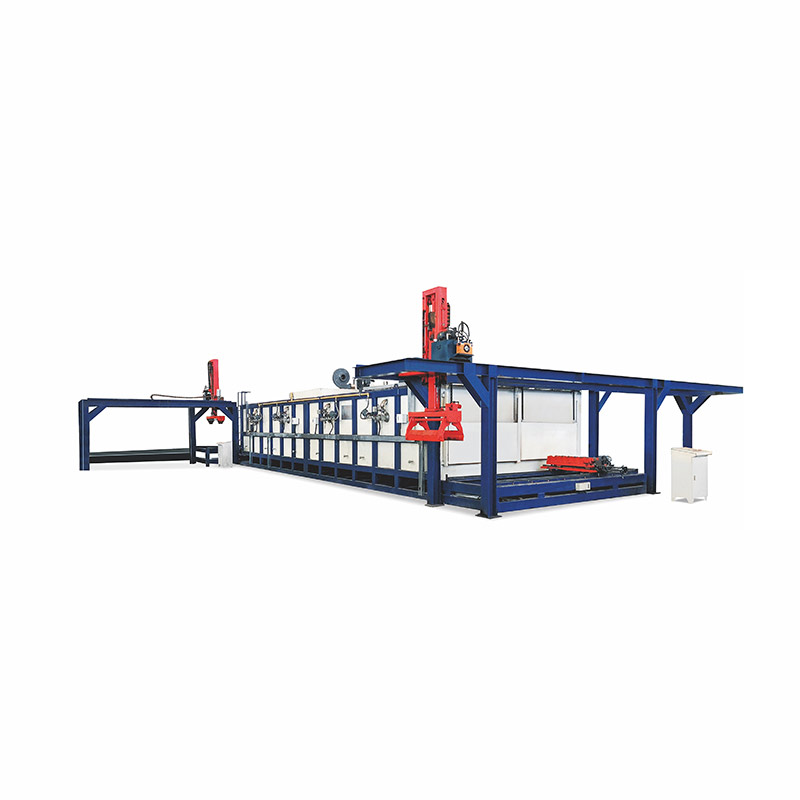

Matching rod inlet and outlet system
Manipulator
